Quick Summary: Street light cameras are advanced surveillance devices, often integrated into existing streetlights, that capture images and video using lenses, sensors, and processors. They connect wirelessly or via cables to transmit data for security, traffic monitoring, and public safety.
Streetlights are more than just glowing beacons; many now house sophisticated cameras that help keep our communities safe and organized. Ever looked up and wondered what’s inside those unassuming metal fixtures? It’s a common question, and figuring out how these street light cameras work can demystify a part of our daily landscape. Don’t worry if it seems complicated – we’re going to break it down into simple, easy-to-understand steps! This guide will shine a light on the technology behind them, so you’ll know exactly what’s happening above. Get ready to see your neighborhood in a whole new way!

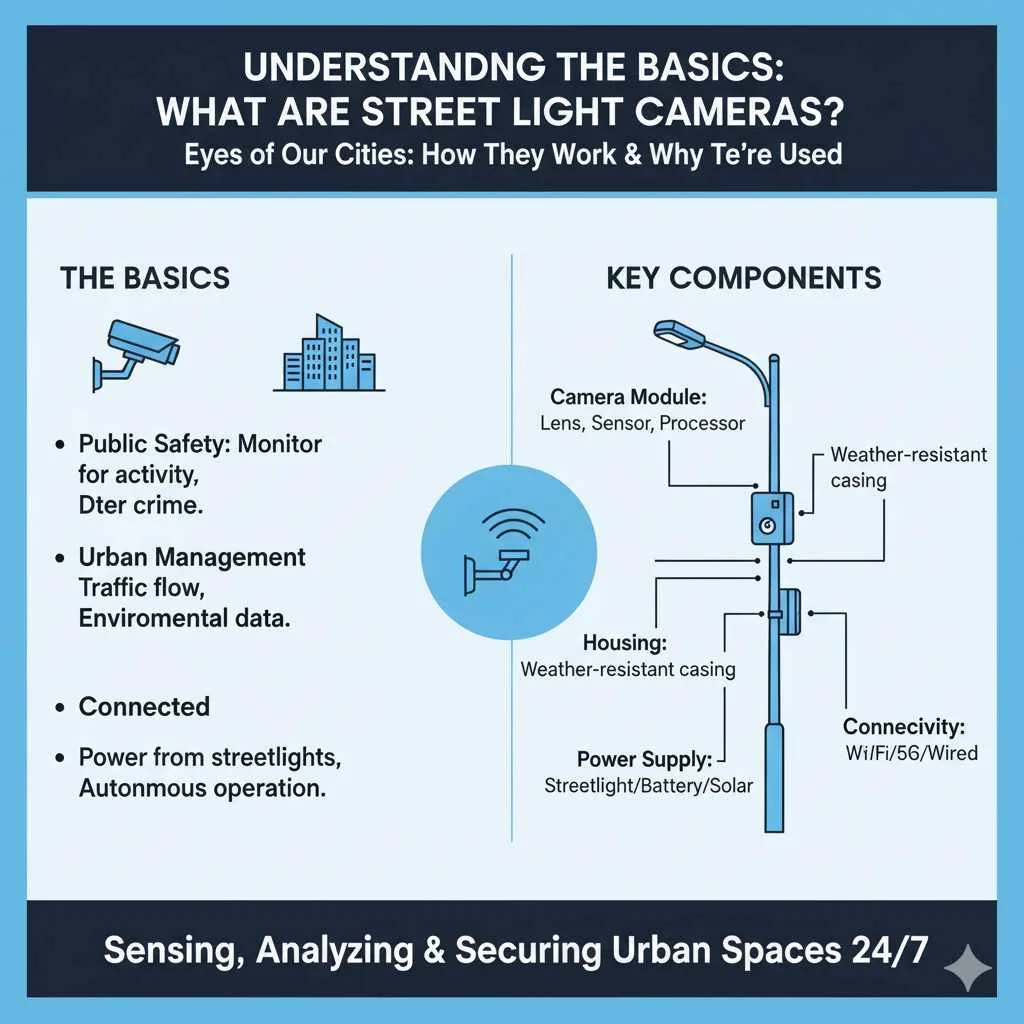

Understanding the Basics: What Are Street Light Cameras?
Street light cameras, also known as pole-mounted cameras or integrated surveillance systems, are essentially the eyes of our public spaces. They are designed to operate autonomously, capturing visual data without constant human intervention. Think of them as smart observers, working tirelessly around the clock.
These cameras are frequently connected to the same power source as the streetlights themselves, optimizing installation and maintenance. Their primary purpose is to enhance public safety by monitoring areas for suspicious activity, deterring crime, and providing evidence in case an incident occurs. Beyond security, they play a crucial role in urban management, helping with traffic flow analysis and even environmental monitoring.
Key Components of a Street Light Camera System
To truly understand how street light cameras work, let’s peek inside and identify the essential parts. Each component has a specific job to do to ensure effective surveillance.
- Camera Module: This is the core unit responsible for capturing images and video. It includes the lens, image sensor, and image processing hardware.
- Lens: The lens focuses light onto the image sensor. Different lenses can offer wide-angle views, telephoto capabilities, or specialized functions like low-light enhancement.
- Image Sensor: This is a small electronic chip that converts light into electrical signals. Common types include CMOS (Complementary Metal-Oxide-Semiconductor) and CCD (Charge-Coupled Device) sensors.
- Processor: This is like the camera’s brain. It processes the raw data from the sensor, performs tasks like image enhancement, compression, and even AI-driven analysis (like object detection).
- Housing: A durable, weather-resistant casing protects the internal components from rain, dust, extreme temperatures, and vandalism.
- Power Supply: Typically draws power from the streetlight’s electrical supply. Some may also have battery backups or solar capabilities for redundancy.
- Connectivity Module: This allows the camera to send captured data. This can be through wired Ethernet connections, Wi-Fi, cellular networks (4G/5G), or other wireless technologies.

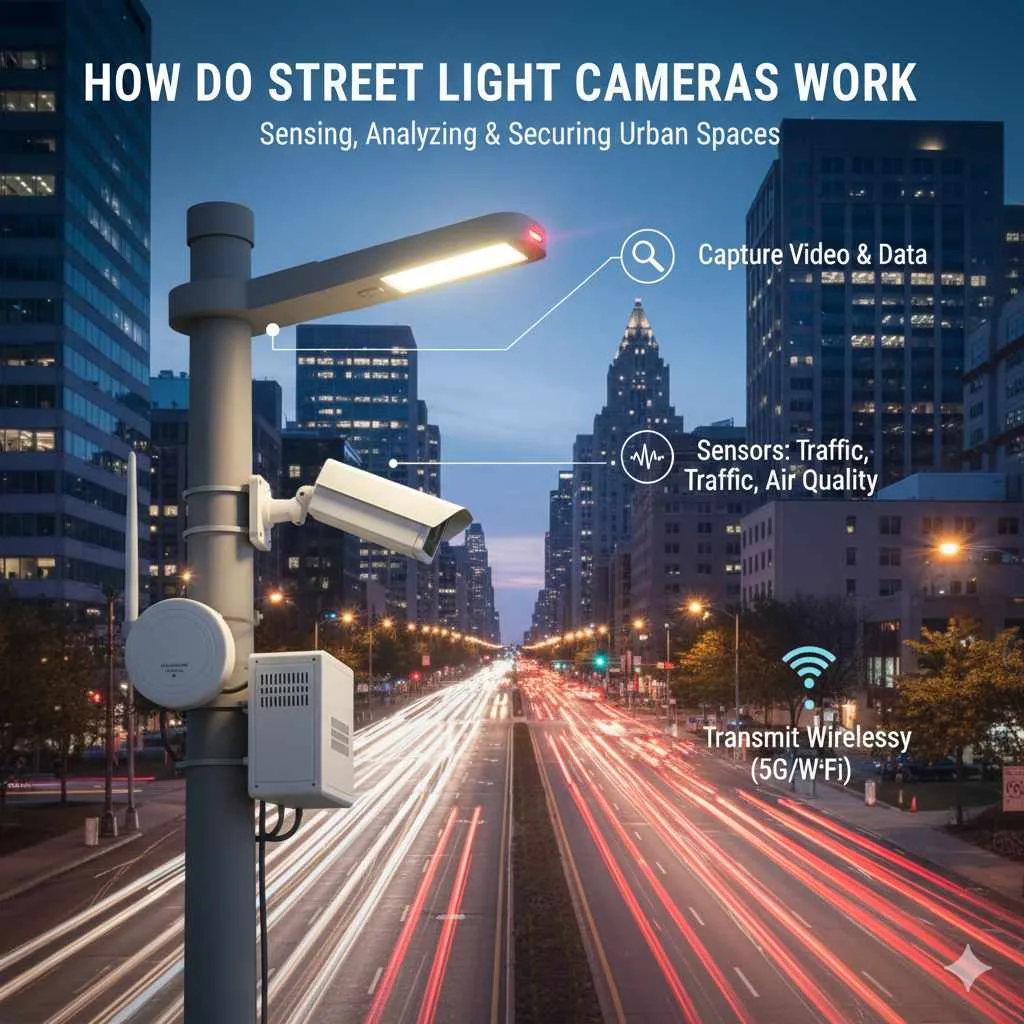

How Street Light Cameras Capture Images and Video
The process begins when light from the environment enters the camera’s lens. This light is then focused onto the image sensor. The sensor, made up of millions of microscopic photosensitive elements (pixels), converts the light into an electrical signal.
This raw electrical signal is then sent to the processor. The processor digitizes the signal, turning it into the familiar image or video data we see. It also performs crucial tasks like adjusting brightness and contrast, reducing noise, and compressing the data to make it easier to store and transmit. Many modern cameras also employ advanced algorithms for features like motion detection, facial recognition (where legally permitted and ethically implemented), or license plate reading. The captured data is then sent to a storage facility or a monitoring center.
The Technology Behind the Scenes: Power and Connectivity
For a street light camera to be effective, it needs a reliable power source and a way to communicate what it sees. These two aspects are critical to its operation and integration into broader surveillance networks.
Powering the Surveillance
The most common method for powering street light cameras is by tapping into the existing electrical grid that powers the streetlight itself. This is a practical and cost-effective solution, as it avoids the need for separate power installations.
| Power Source Method | Description | Pros | Cons |
|---|---|---|---|
| Integrated with Streetlight Power | Diverting a small portion of the power supply dedicated to the streetlight. | Cost-effective, utilizes existing infrastructure, reliable power source. | Dependent on streetlight functionality, potential for power fluctuations affecting both. |
| Dedicated Power Line | A separate electrical line installed specifically for the camera. | Independent of streetlight power, more stable power supply for the camera. | Higher installation cost and complexity. |
| Solar Power (with Battery Backup) | Utilizing solar panels to charge batteries, which then power the camera. | Environmentally friendly, can be installed in locations without easy grid access. | Weather dependent (cloudy days), requires battery maintenance, potentially lower resolution/frame rates due to power constraints. |
This integration ensures that cameras are powered consistently, allowing them to monitor continuously. In some instances, especially in remote areas or for specific tactical deployments, solar-powered units with robust battery backups are used, offering flexibility and sustainability.
Connecting to the World: Data Transmission
Once images and video are captured, they need to be sent somewhere. This is where connectivity comes in. The method of data transmission is crucial for real-time monitoring and evidence collection.
Wired Connections: For high-bandwidth, reliable transmission, wired Ethernet cables are often used. These might be run alongside the streetlight’s power lines, connecting to a local network hub or directly to a central server. This method is robust but can be more expensive and labor-intensive to install.
Wireless Networks:
Wi-Fi: In areas with existing Wi-Fi infrastructure, cameras can connect wirelessly. This offers flexibility but can be susceptible to signal interference and range limitations.
Cellular (4G/5G): This is a very common and increasingly popular method. Cameras equipped with cellular modems can transmit data over mobile networks to a remote server. This is highly scalable and can be deployed quickly.
Dedicated Wireless Links (Point-to-Point): For specific city-wide networks, dedicated radio frequencies can be used to create private wireless networks for camera data.
The choice of connectivity often depends on the existing infrastructure, the required data speed, and the budget constraints of the municipality or organization deploying the cameras. For instance, a busy intersection might benefit from high-speed 5G for real-time traffic analysis, while a quieter park might use a more cost-effective cellular connection for occasional activity monitoring.
Inside the Street Light Pole: Components in Detail
Let’s take a closer look at the actual hardware that makes these cameras function within the confines of a streetlight pole. It’s a marvel of compact engineering.
The Camera Unit Itself
The camera unit is typically a self-contained module. Modern units often feature high-definition resolution (HD or 4K) to capture clear details. They can be equipped with specialized lenses for different viewing needs.
Fixed Lens Cameras: These have a lens that cannot be zoomed. They are great for a wide, consistent view of an area.
Pan-Tilt-Zoom (PTZ) Cameras: These are more advanced, allowing operators to remotely control the camera’s direction (pan and tilt) and zoom in on specific details. This offers incredible flexibility for monitoring.
Infrared (IR) Capabilities: Many cameras include infrared LEDs, allowing them to see in complete darkness. The captured image appears in black and white, but it provides crucial visibility when there’s no ambient light.
Environmental Protection and Durability
Street light cameras are exposed to the elements 24/7. Therefore, their housing is incredibly important. They are typically made from robust materials like aluminum or specialized plastics and are sealed to meet IP (Ingress Protection) ratings. An IP rating, like IP66 or IP67, indicates a device’s resistance to dust and water. You can learn more about these ratings from organizations like the International Electrotechnical Commission (IEC), which sets global standards for electrical solutions.
This rugged design ensures that the camera can withstand harsh weather conditions, from scorching sun and heavy rain to freezing snow and strong winds, without compromising its performance.
Advanced Features: What Else Can They Do?
Modern street light cameras are not just simple recording devices. They are increasingly incorporating smarter technologies:
Artificial Intelligence (AI) and Machine Learning (ML): These technologies enable cameras to analyze video feeds in real-time. They can be programmed to detect specific events, such as:
Pedestrian or vehicle anomalies (e.g., a car driving the wrong way).
Crowd density to manage public events.
Abandoned objects.
Gunshots or other loud noises.
Edge Computing: Instead of sending all raw video data to a remote server for processing, some cameras perform certain analyses directly on the device (at the “edge” of the network). This reduces bandwidth requirements and allows for faster detection of critical events.
High Dynamic Range (HDR): This technology helps cameras to capture clear images even in challenging lighting conditions, such as bright sunlight or deep shadows, by balancing the exposure across the scene.
Benefits and Applications of Street Light Cameras
The integration of cameras into our street lighting infrastructure offers a wide array of benefits that contribute to safer and more efficiently managed communities.
Enhancing Public Safety and Security
This is arguably the primary driver behind the deployment of street light cameras.
- Crime Deterrence: The visible presence of cameras can discourage criminal activity.
- Incident Investigation: Footage provides invaluable evidence for police investigations of crimes, accidents, and other incidents.
- Emergency Response: Real-time monitoring allows for faster and more informed responses to emergencies. First responders can get a visual of the situation before arriving.
- Traffic Management: Cameras can monitor traffic flow, identify congestion points, and aid in optimizing traffic light timings. This can be a significant help in urban planning efforts, which you can explore further at resources like the Federal Highway Administration’s traffic management resources.
Optimizing Urban Operations
Beyond direct security, these cameras contribute to the smooth running of cities and towns.
Smart City Initiatives: Street light cameras are often a foundational component of smart city infrastructure, feeding data into broader urban management systems.
Environmental Monitoring: Some advanced systems can be equipped with sensors to monitor air quality or noise pollution.
Resource Management: Data from cameras can help city planners understand how public spaces are used, informing decisions about infrastructure improvements and resource allocation.

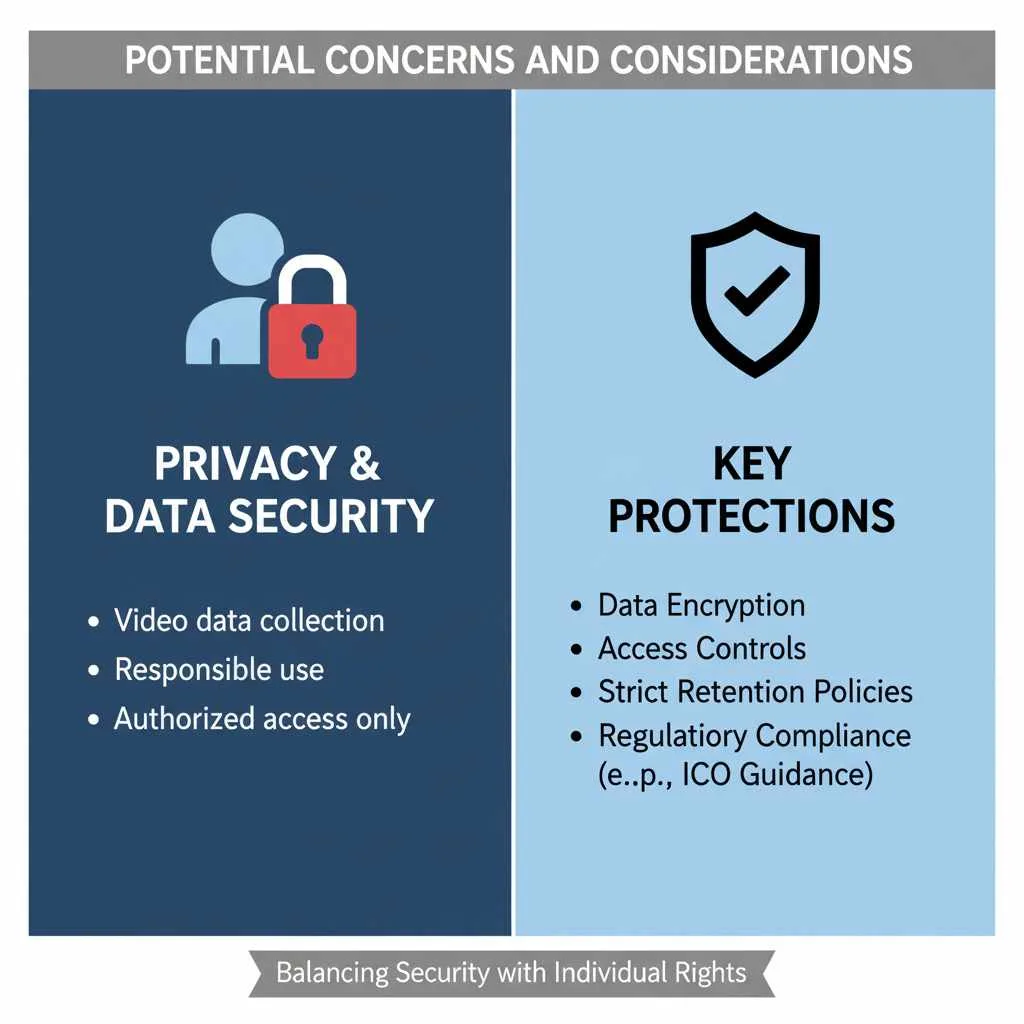

Potential Concerns and Considerations
While the benefits are clear, it’s also important to acknowledge the concerns often associated with widespread surveillance.
Privacy and Data Security
The collection of video data raises important questions about privacy. Safeguards are essential to ensure that data is collected responsibly, stored securely, and only accessed by authorized personnel for legitimate purposes. Regulations like the UK’s Information Commissioner’s Office (ICO) guidance on CCTV provides a framework for responsible use, and similar principles are applied globally.
Proper data encryption, access controls, and strict retention policies are vital. Many municipalities have specific policies governing the use of public surveillance cameras to address these concerns.
Frequently Asked Questions (FAQ)
Q1: Are street light cameras always on?
Yes, most street light cameras are designed to operate continuously, capturing footage 24 hours a day, 7 days a week, unless there is a power outage or scheduled maintenance.
Q2: Can I tell if a streetlight has a camera?
Often, yes. While some cameras are discreetly integrated, many have distinctive housings that differ from a standard streetlight fixture. Sometimes, municipalities will also provide maps or information about their surveillance camera locations.
Q3: Who monitors the footage from street light cameras?
This varies by location. In many cases, the footage is monitored by law enforcement agencies, municipal security departments, or specifically designated city personnel. Access is typically controlled.
Q4: How long is the video footage stored?
Storage durations vary greatly depending on local regulations, the capacity of the storage system, and the purpose of the cameras. Some footage might be stored for a few days, while critical incident footage might be retained for much longer periods.
Q5: Can street light cameras zoom in on my house?
While some advanced PTZ cameras can zoom, their primary deployment is usually focused on public areas like streets, intersections, and public entrances, rather than directly into private residences, to respect privacy laws and public expectations.
Q6: Are there different types of street light cameras?
Yes, there are. They range from basic fixed cameras for general surveillance to advanced PTZ (Pan-Tilt-Zoom) cameras and even specialized cameras for traffic analysis or license plate recognition. They also differ in their power and data transmission methods.
Conclusion
Street light cameras are a fascinating piece of modern urban technology that operates with impressive efficiency. By understanding how these cameras work – from their sophisticated lenses and sensors to their robust power and connectivity solutions – we gain a greater appreciation for the unseen systems that contribute to our safety and the smooth functioning of our communities. They are an integral part of building smarter, more secure cities, and as technology continues to evolve, we can expect them to become even more capable and seamlessly integrated into our daily lives. Knowing more about them empowers us and reinforces the comfort of living in a well-observed and managed environment.
